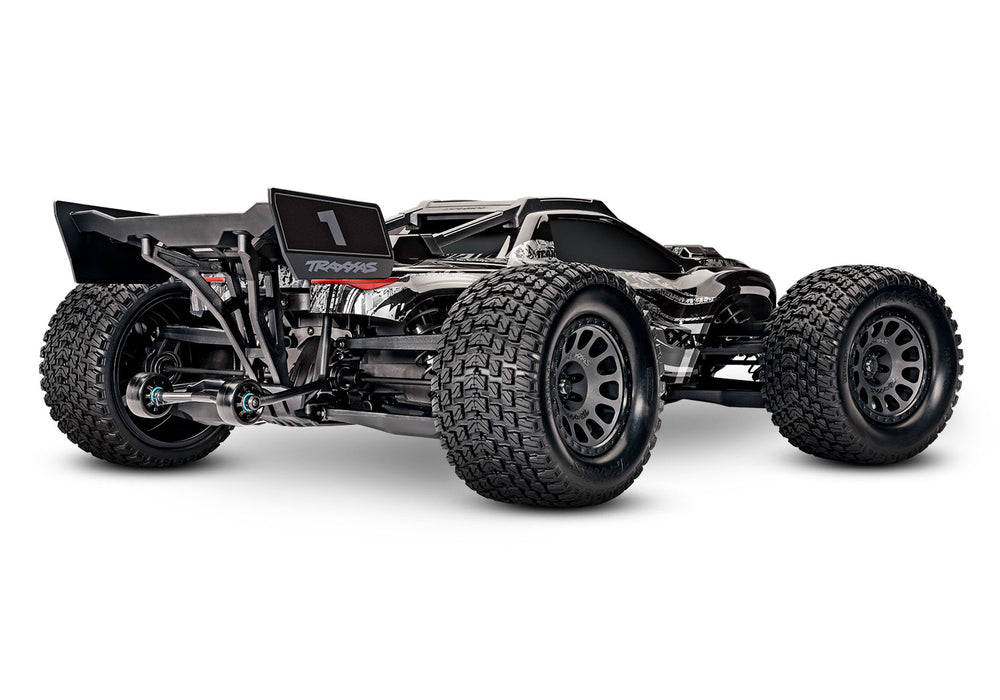

Traxxas XRT: Brushless Electric Race Truck with TQi Traxxas Link Enabled 2.4GHz Radio System, Velineon VXL-8s brushless ESC (fwd/rev), and Traxxas Stability Management (TSM) - Black
SKU TRA78086-4BLACK

Traxxas XRT: Brushless Electric Race Truck with TQi Traxxas Link Enabled 2.4GHz Radio System, Velineon VXL-8s brushless ESC (fwd/rev), and Traxxas Stability Management (TSM) - Black

by Traxxas
Availability:
Available for Order
$1,599.99 - $1,599.99
$1,599.99
$1,599.99 - $1,599.99
$1,599.99

Delivery time

Once you place an order with us, please allow 1 to 2 business days for order processing before your package is shipped.

Availability

If an item you ordered is not in stock or backorder, we will promptly notify you via email with an approximate date for when we expect to receive the product.

Canada Post

Our shipping services are currently available for delivery within Canada only. Some remote or specific locations may experience longer delivery times.

Race-Inspired Engineering
Extreme 8s Power and Speed
X-Truck® Size and Strength

The Traxxas XRT fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed.

6s 22+ Volts and 70+mph
XRT (#78086-4)
Built For Speed And Handling

Built For Speed And Handling


XRT was engineered with a focus on speed, handling, and performance. XRT’s low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+ mph.

Proven Tough All-Metal Driveline

Proven Tough All-Metal Driveline


XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminum center shaft. It’s a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx.

>Race-Inspired Low-CG Chassis

Race-Inspired Low-CG Chassis

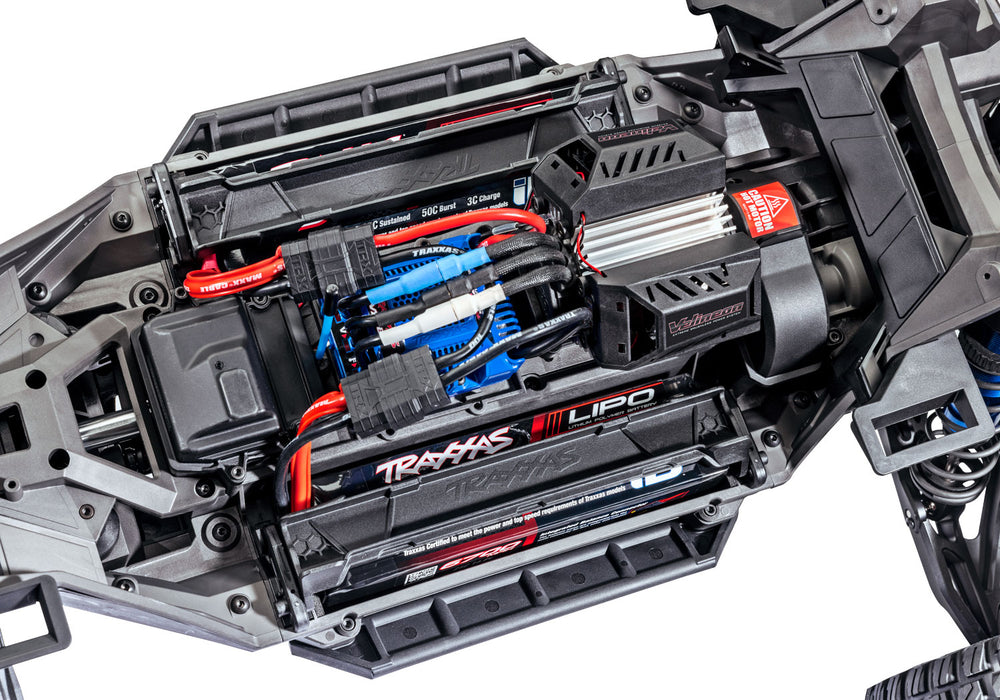

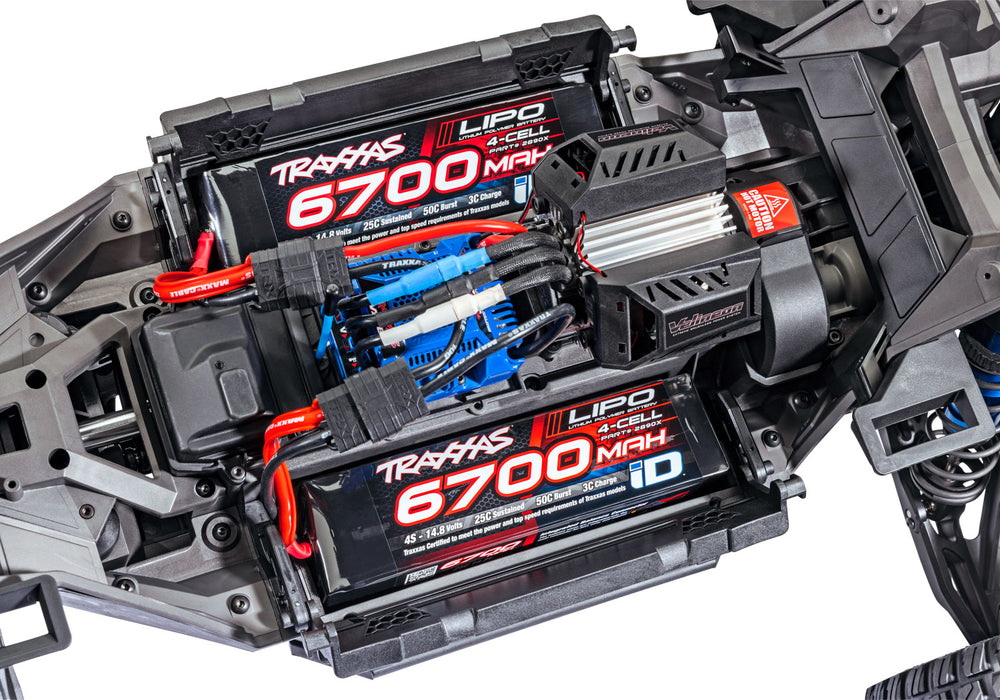

XRT’s performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components.

Patent-Pending Clipless Body

Patent-Pending Clipless Body


XRT’s patent-pending clipless body easily removes and installs in just seconds and yet it locks in place with incredible strength and security. The system uses a cage inside the body to minimize flex while external skids are strategically placed to protect the body.

Gravix Race Tires

Gravix® Race Tires


XRT’s Gravix® race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision.

VXL-8s Power System

VXL-8s Power System


Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire rpm range. More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.


Video


prev
next

Overview


Details

XRT Body Click for Details High-Downforce Wing XRT Race Wheels Integrated Wheelie Bar Rugged Top Skids Gravix® Race Tires Integrated Cold-Air Intakes Chassis Click for Details GTX Race Shocks Integrated Shock Tower Design Modular Chassis Aluminum Heatsink with Dual Fans Rock Solid Motor Mount Snap-Lock Battery Retainers Waterproof Electronics High-Performance Steering Design Rugged Skid Plates Extreme Impact Resilience Driveline Click for Details Solid Steel CV Driveshafts Large Sealed Bearings Torque-Biasing Center Drive Shock-Absorbing Cush Drive Aluminum Splined Driveshaft Sealed 4-Gear Differentials


High-Downforce Wing

High-Downforce Wing

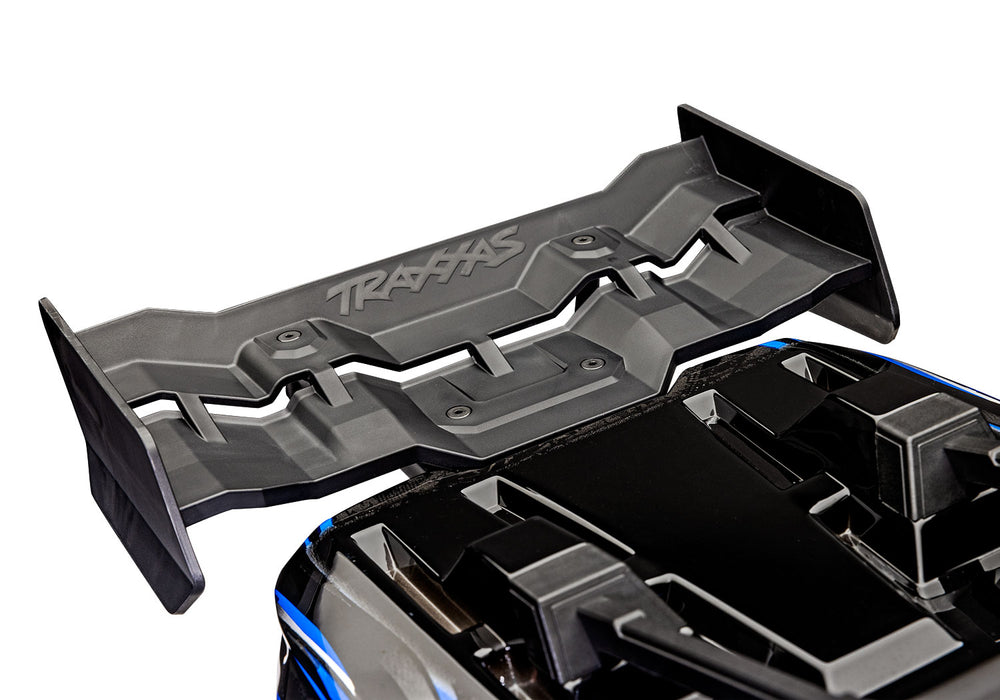

XRT’s rear wing provides added stability for 60+ mph speed runs and integrates neatly with the clipless body for a sophisticated look. The wing mount soaks up even the hardest landings without transferring shock energy to the chassis.

XRT Race Wheels

XRT Race Wheels

XRT’s large 3.8" race wheels feature a matte black finish for a high-tech look. A huge 24mm splined hub maximizes surface area with 17mm aluminum lock nuts to secure them in place.

Integrated Wheelie Bar

Integrated Wheelie Bar

XRT’s wheelie bar helps prevent backflips under full-throttle acceleration and flexes to absorb impacts on less-than-perfect landings. The integrated wheelie bar also functions as a convenient handle to transport XRT to your next adventure.

Rugged Top Skids

Rugged Top Skids

XRT’s rugged top skids protect the clipless body from damage. Internal reinforcements maintain the body’s integrity.

Gravix® Race Tires

Gravix® Race Tires

XRT’s revolutionary Gravix tires are built to run hard at the track or in the wild. The directional tread pattern runs quieter than typical off-road tires with excellent traction and a thick center carcass to prevent ballooning at high speed.

Integrated Cold-Air Intakes

Integrated Cold-Air Intakes

Cold-air intakes are fully integrated into XRT’s clipless body frame for maximum strength and tear prevention. The lower intake even features an internal grille to keep rocks and other debris out of the chassis and away from the steering components.

GTX™ Race Shocks

GTX™ Race Shocks

GTX™ aluminum race shocks are built for ultra-smooth, long-lasting performance. The heavy-duty springs and shock bodies are tuned for high-performance handling that complements XRT’s low and lean stance.

Integrated Shock Tower Design

Integrated Shock Tower Design

XRT’s shock towers are an integral part of the frame with massive buttresses to dissipate shock loads throughout the chassis. Heavy-duty receivers secure the clipless body latches directly to the towers for maximum strength.

Modular Chassis

Modular Chassis

XRT’s chassis relies on modules that key into each other at precise angles to add strength and support where it’s needed most. This high-strength design also makes maintenance a breeze.

Aluminum Heatsink with Dual Fans

Aluminum Heatsink with Dual Fans

XRT’s aluminum heatsink wraps around nearly 75% of the motor’s exposed surface to pull out more heat. Dual electric fan shrouds draw cooling air from the body vents through the oversized fins for more effective cooling performance and longer run times.

Rock Solid Motor Mount

Rock Solid Motor Mount

A rock-solid motor mount cradles the motor and locks it in place so it can’t flex or slip out of position. Four keyed pins set the gear mesh, eliminating the need for complicated adjustments.

Snap-Lock Battery Retainers

Snap-Lock Battery Retainers

Hook and loop battery hold down straps are messy, frustrating, and steal time away from your driving fun. Traxxas engineering solves this with our proven snap-lock solution that securely holds and protects batteries. You can even insert body clips for maximum battery security.

Waterproof Electronics

Waterproof Electronics

XRT’s fun is not limited by mud, snow, or water. A sealed receiver box with an easy access port protects the TQi receiver for all-weather driving.

High-Performance Steering Design

High-Performance Steering Design

XRT’s dual-bellcrank steering system delivers sharp handling and fast reflexes with the security of a heavy-duty cam-style servo saver. The servo saver sits at the top of the steering post, keeping it away from dirt and debris that can affect performance. Special vents keep everything running smoothly by evacuating dirt and debris away from the steering components.

Rugged Skid Plates

Rugged Skid Plates

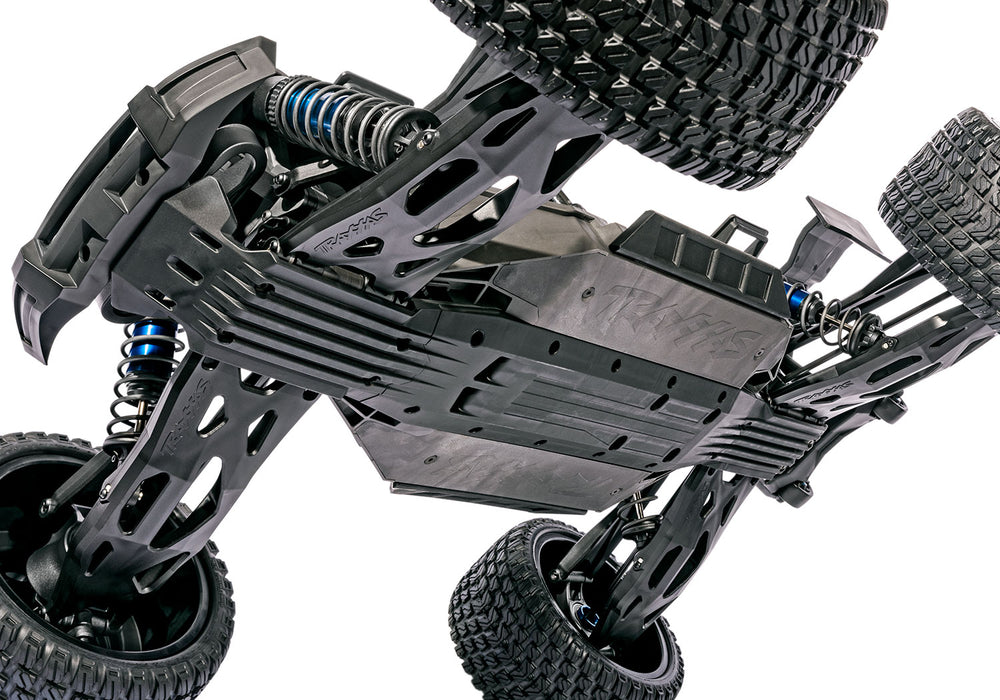

XRT’s three rugged skid plates key together tightly to protect the chassis from damage. The front skid plate was designed at just the right angle to kick the front end up and prevent digging into the ground when landing nose down.

Extreme Impact Resilience

Extreme Impact Resilience

XRT’s suspension arms are made from our toughest heavy-duty composite material with double-shear connections for incredible strength. The rear wing and front bumper mount with an oval support ring that deflects just enough to absorb impact forces while returning to its pre-formed shape almost instantly.

Solid Steel CV Driveshafts

Solid Steel CV Driveshafts

Thick constant-velocity steel driveshafts increase XRT’s suspension travel and steering angles with legendary Traxxas-Tough® durability. Splined differential outputs provide incredible strength with easy cleaning and service.

Large Sealed Bearings

Large Sealed Bearings

Extreme-duty front and rear hub carriers feature oversize bearings to handle the XRT’s 8s drivetrain. Full-contact bearing seals keep out dirt and grime for less time spent on cleaning and maintenance.

Torque-Biasing Center Drive

Torque-Biasing Center Drive

The all-metal Torque-Biasing Center Drive uses 20M weight oil to transfer power evenly to all four wheels to prevent unloading under full-throttle acceleration.

Shock-Absorbing Cush Drive

Shock-Absorbing Cush Drive

Proven in the 8s X-Maxx, the Cush Drive absorbs driveline shocks but sends pure uninterrupted power straight to the Torque-Biasing Center Drive for relentless acceleration.

Aluminum Splined Driveshaft

Aluminum Splined Driveshaft

A large-diameter aluminum center driveshaft carries power to the front and rear differentials. Splined drives are used throughout for precise engagement, incredible strength, and smooth running. Innovative felt seals keep dust and debris out of the central tunnel.

Sealed 4-Gear Differentials

Sealed 4-Gear Differentials

XRT’s sealed 4-gear differentials are proven tough and feature our largest ring and pinion gears. They are filled with heavyweight oil, giving drivers the confidence to power slide through turns with massive roost and total control.

prev
next

Make sure you don’t miss any of the latest XRT news, accessories, and updates.

XRT® Data

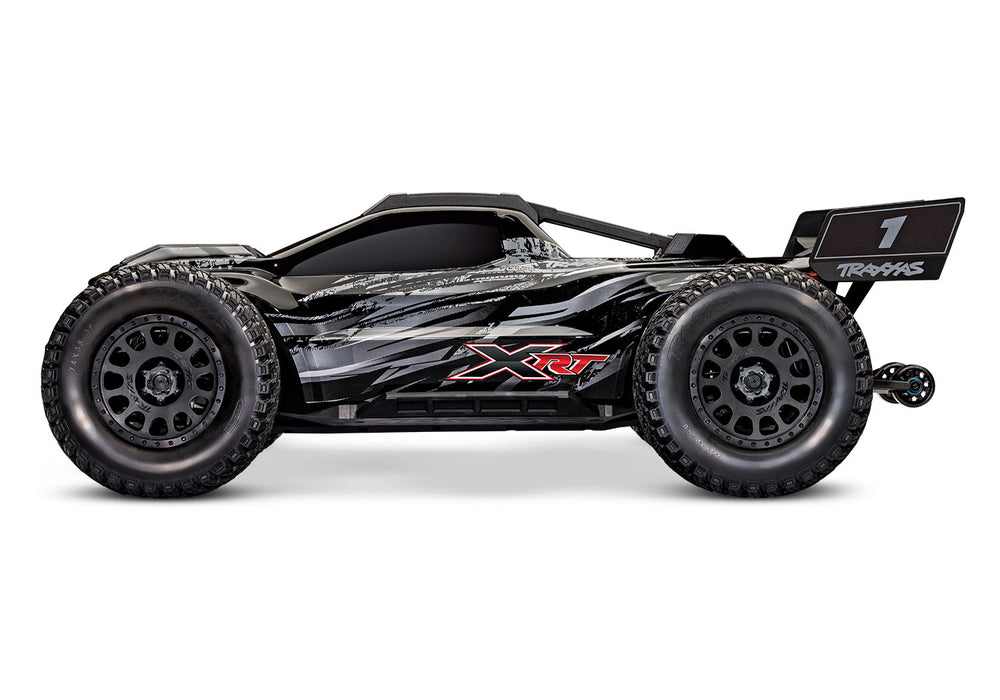

XRT Specs Side

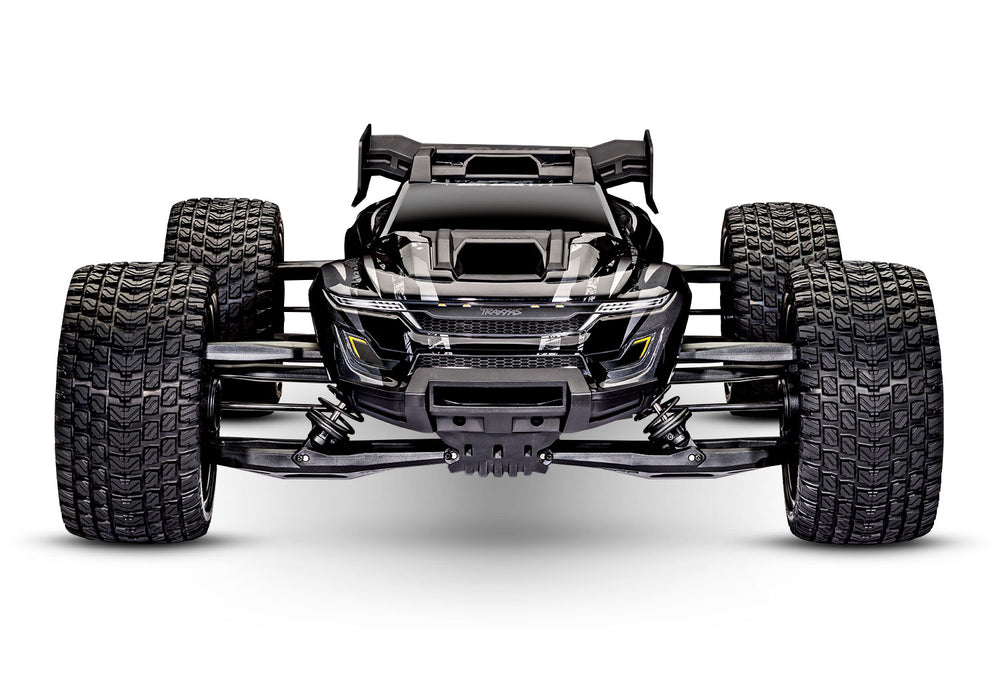

XRT Specs Front
Length (including wing): 31.41 inches (798 mm)
Front Track: 23.43 inches (595 mm)
Rear Track: 23.43 inches (595 mm)
Ground Clearance: 1.93 inches (49 mm)
Weight: 19.70 pounds (8.94 kg) - without body
21.03 pounds (9.54 kg) - with body
23.87 pounds (10.83kg) - with body & two 4s 6700 mAh LiPos
Height: 10.15 inches (258 mm) - ride height
12.12 inches (308 mm) - full droop
Wheelbase: 18.9 inches (480 mm)
Shock Length (front): 6.79 inches (173 mm)
Shock Length (rear): 6.79 inches (17 3mm)
Tires (Pre-Glued): 7.4 x 4.0 inches (188 mm x 102 mm)
Wheels: 4.3 x 5.7 inches (110 mm x 147 mm)
Speed Control: Velineon® VXL-8s
Motor (electric): Velineon® 1200XL Brushless
with heat sink and dual fan shrouds
Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)
